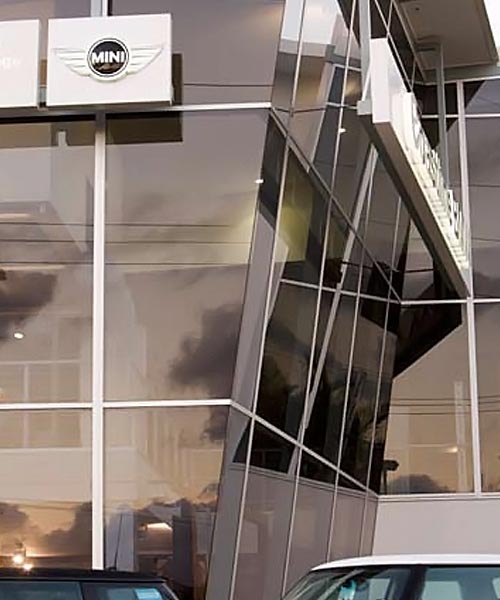

The Hunter Flushglazed System is the most versatile and flexible of the ALSPEC Commercial Architectural Flushglaze Framing Systems. Available in two frame depths, 101.6mm and 152.4mm it meets the majority of general wind load and span requirements. Ideal for shopfronts and low rise curtain wall applications.
A feature of the Hunter 101.6mm and 152.4mm Systems is the Double Glazing option which contributes to energy efficiency.
With it’s straight cuts and flush glazing the Hunter not only looks good, but is easy to fabricate and easy to install. Suitable for a range of single glass thicknesses up to 12.4mm it has self draining sub sills that solve water leakage problems. The system can be internally or externally glazed along with incorporating the flexibility and appeal of gently curved or faceted frame installations. The Hunter also provides a seamless interface with ALSPEC’s Commercial Sliding Door, along with the Hawkesbury Multi-fold Door.
| FEATURES | BENEFITS |
|---|---|
| Straight cut ends | Simple to fabricate |
| Single and double glazing options | Meets demanding thermal and acoustic specifications |
| High weather performance | Offers protection from the elements |
| Pocket glazing | Reduces the number of glazing beads required thus lowering fabrication and installation time |
| Self draining sills | Helps solve any water leakage problems |
| Complete range of accessories available | Ease of fabrication |
| Seamless interface with the Commercial Sliding Door and Hawkesbury Multi-fold Door | Allows for design flexibility |
| Innovative mating mullion design | Offers gently cured or faceted frame installations |
| Accepts up to 12.4mm glass | Offers the designer multiple glass options to meet demanding thermal and acoustic specifications |
Specifications:
